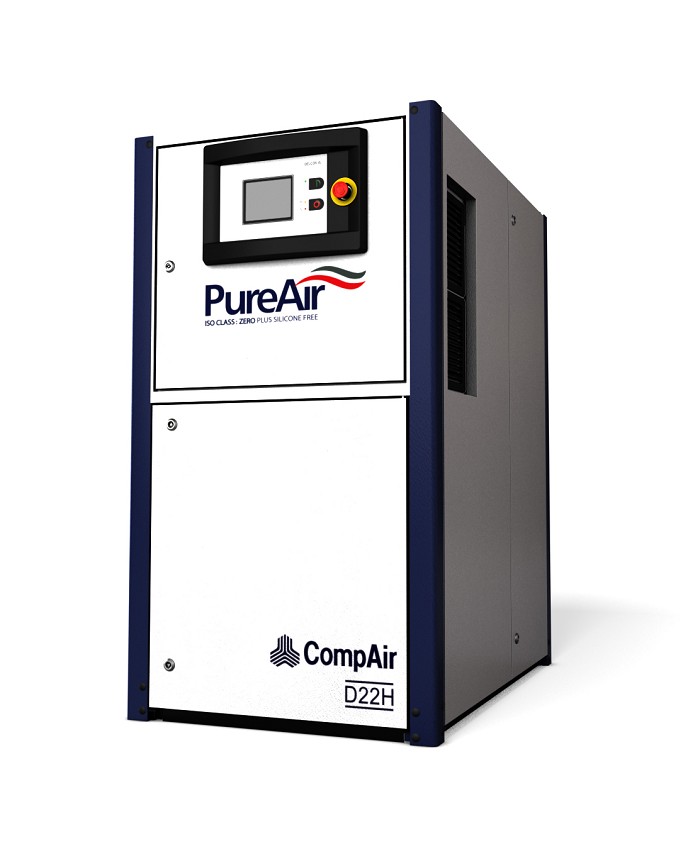

Oil Free Rotary Screw Compressor
CompAir DH – 100% air purity that meets stringent quality standards
These oil-free air compressor models contain absolutely no oil anywhere in the compressor and have been certified ISO 8573-1 Class Zero (2010) and silicone free.
Water injected, silicone free and oilfree air
Industries such as Electronics, Chemical, Pharmaceutical, Food and Beverage depend upon pure oil-free compressed air as a safe, clean energysource to drive production lines. Sometimes the air comes intodirect contact with the product being created, so it is criticalthat the purity of this air is maintained at all times. You cansee how this is achieved by the DH series in this video – click the design tab, to watch this. The DH Series comprises of the following features:
- Single-stage, direct-driven compression element maximises efficiency and minimises maintenance
- High quality water injection lubricates, cools and seals the compression process, maximising efficiency
- No gearbox means no need for associated oil lubrication
- Low bearing loads and low speeds mean sealed-for-life bearings can be used, requiring no oil lubrication
- Regulated speed technology available to reduce energy costs
- Comprehensive control ensures safe and reliable operation and includes remote communication capability
- Fully packaged and silenced enclosure reduces noise and simplifies installation
The unique design achieves lower speeds combined with lower operating temperatures – both resulting in high efficiency and reduced component wear. Using a single-stage, direct-driven motor without gears or belts, maximises efficiency. Limiting the compressed air to the application demand with regulated speed ensures that no energy is wasted.
DH compressors have significantly fewer moving parts than comparable machines, meaning there is less to go wrong, while lower speeds and balanced bearing loads extend the compression element service life for low-cost operation.
With exceptionally low running temperatures of less than 60°C near isothermal compression is achieved. This also eliminates the need of an internal aftercooler and associates power consumption reducing pressure drop to the minimum.
The compression loads are balanced resulting in low bearing loads and highest reliability
The tried and tested reverse osmosis filtration provides high quality purified water to lubricate, seal and cool the compression process. Using a permeate pump the water required is reduced to a minimum.
